VERTICAL · WITH SEPARATE BEARING BRACKET

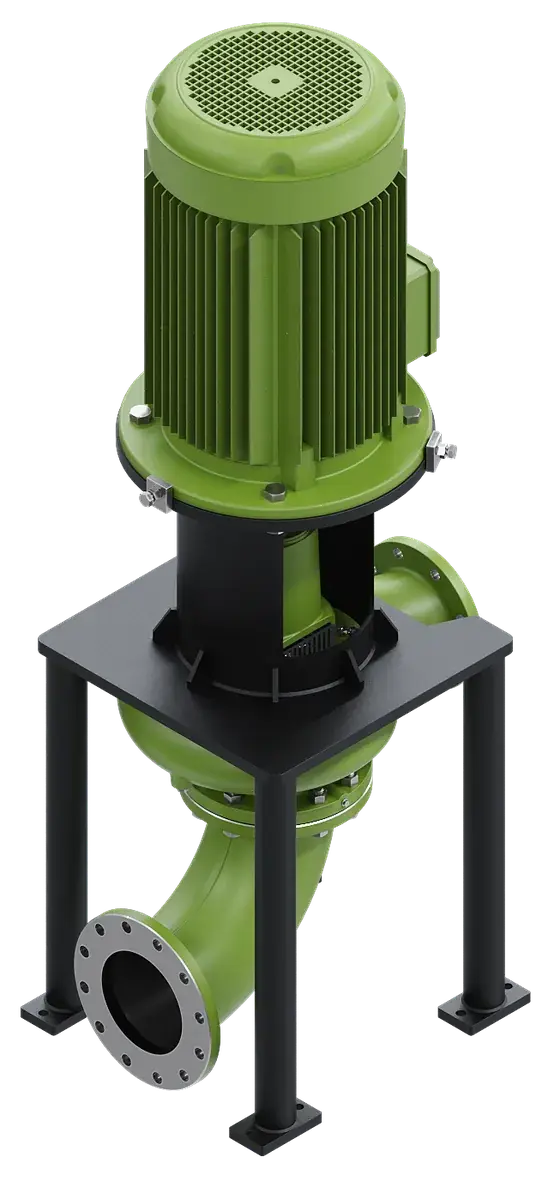

ECO EN 733Norm Centrifugal Pumps (Vertical)
Technical Catalogue360° View
DN32 – DN250Discharge flange
up to 1200 m³/hCapacity
up to 160 mHead
up to 3600 rpmSpeed
-10 °C to +140 °COperating temperature
10 – 16 barCasing pressure (Pmax)
Product Description
ECO Norm Centrifugal Pumps (Vertical)
Vertical, single-stage, end suction centrifugal pumps with separate bearing bracket, volute casing and closed impeller, compliant with Energy Regulation EU 547/2012. The main dimensions comply with EN 733, and the suction and discharge flanges with EN 1092-2 / PN 16. The impellers are balanced in accordance with ISO 1940 Class 6.3. Thanks to the back-pull-out design, the bearing and rotor assembly can be removed without disconnecting the volute casing from the pipework.
Liquids handled
ECO Vertical Pumps are used for transferring non-abrasive, low-viscosity clean and slightly contaminated liquids that contain no fibres or solid particles.
Standards and design
EN 733Main dimensions
EN 1092-2 / PN 16Suction and discharge flanges
EU 547/2012Energy regulation
ISO 1940 Class 6.3Impeller balancing
Design featureBack-pull-outBearing and rotor assembly can be removed without disconnecting the volute casing from the pipework
Applications
Which industries is it used in?
6applications
Building Systems01
Marine02
Food & Beverage Industry03
Heating & Cooling04
Water Supply and Treatment05
Agricultural Irrigation06
360° view
ECO Norm Centrifugal Pumps (Vertical) 360° view
Rotate the pump by dragging or with the arrow keys; examine it from every angle.
Discharge flangeDN32 – DN250
Capacityup to 1200 m³/h
Headup to 160 m
Speedup to 3600 rpm
Operating temperature-10 °C to +140 °C
Casing pressure (Pmax)10 – 16 bar
Vertical · EN 733
END SUCTION CENTRIFUGAL PUMPS
See all ECO types ECO Types 10
01
ECO EN 733 Norm Centrifugal Pumps02
ECO Close-Coupled Pumps03
ECO Vertical Close-Coupled Pumps04THIS PAGE

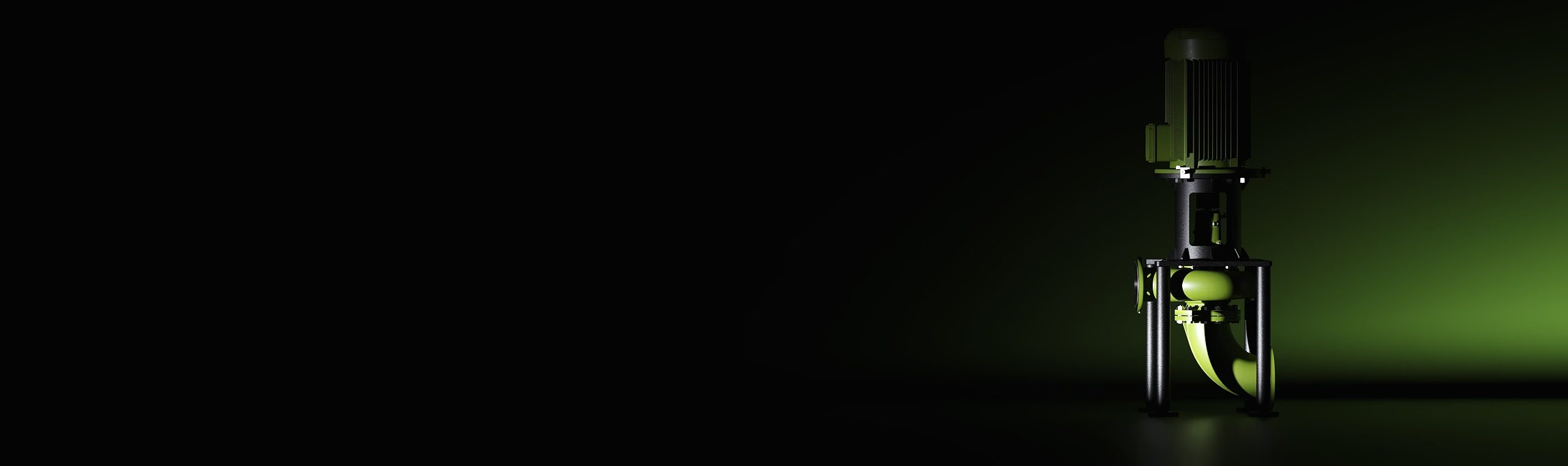

ECO Vertical Pumps – With Separate Bearing Bracket05
