DN40 – DN300Discharge flange
up to 1600 m³/hCapacity
up to 95 mHead
up to 1450 rpmSpeed
up to +95 °COperating temperature
10 barCasing pressure (Pmax)
Product Description
Waste Water and Process Pumps (Sump Design)
These are volute casing, single-stage, end suction, vertical, sump design centrifugal pumps with closed, semi-open and vortex impellers. Suction and discharge flanges conform to EN 1092-2 / PN 10 – PN 16, and to EN 1092-1 / PN 10 – PN 16 for steel and stainless steel casings. Impellers are balanced in accordance with ISO 1940 Class 6.3.
Liquids handled
Waste Water and Process Pumps (Sump Design) are used for transferring industrial, domestic and viscous – corrosive waste water, and liquids containing solid and fibrous particles.
Standards and design
EN 1092-2 / PN 10 – PN 16Suction and discharge flanges
EN 1092-1 / PN 10 – PN 16Steel and stainless steel casings
ISO 1940 Class 6.3Impeller balancing
Vertical, sump designVolute casing, single-stage, end suction
Design featureClosed, semi-open, vortexImpeller options; for liquids containing solid and fibrous particles
Applications
Which industries is it used in?
8applications
Waste Water01
Iron and Steel Industry02
Power Plant03
Food & Beverage Industry04
Paper Industry05
Chemical Industry06
Mining07
Petroleum Industry08
360° view

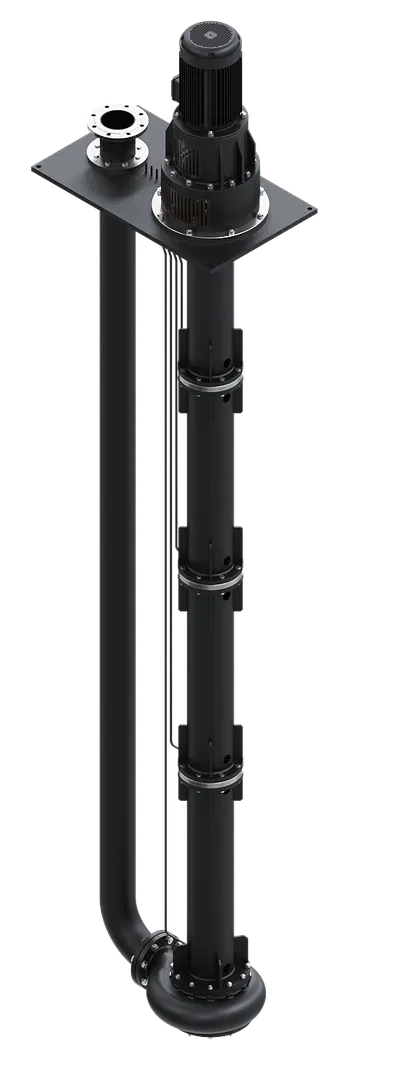

PD-V 360° view
Rotate the pump by dragging or with the arrow keys; examine it from every angle.
Discharge flangeDN40 – DN300
Capacityup to 1600 m³/h
Headup to 95 m
Speedup to 1450 rpm
Operating temperatureup to +95 °C
Casing pressure (Pmax)10 bar
PD-V · Vertical, sump design
