DN40 – DN300Discharge flange
up to 1600 m³/hCapacity
up to 95 mHead
up to 2900 rpmSpeed
-10 °C to +110 °COperating temperature
10 – 16 barCasing pressure (Pmax)
Product Description

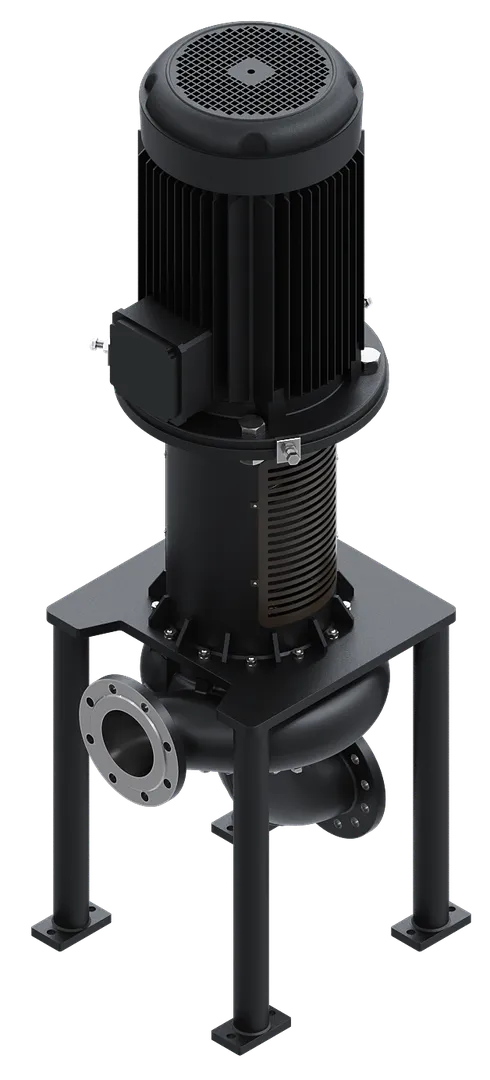

Waste Water and Process Pumps (Vertical)
These are volute casing, single-stage, end suction, vertical centrifugal pumps with closed, semi-open and vortex impellers. Suction and discharge flanges conform to EN 1092-2 / PN 10 – PN 16, and to EN 1092-1 / PN 10 – PN 16 for steel and stainless steel casings. Impellers are balanced in accordance with ISO 1940 Class 6.3.
Liquids handled
Waste Water and Process Pumps (Vertical) are used for transferring industrial, domestic and viscous – corrosive waste water, and liquids containing solid and fibrous particles.
Standards and design
EN 1092-2 / PN 10 – PN 16Suction and discharge flanges
EN 1092-1 / PN 10 – PN 16Steel and stainless steel casings
ISO 1940 Class 6.3Impeller balancing
VerticalVolute casing, single-stage, end suction
Design featureClosed, semi-open, vortexImpeller options; for liquids containing solid and fibrous particles
Applications
Which industries is it used in?
7applications
Waste Water01
Building Systems02
Iron and Steel Industry03
Power Plant04
Food & Beverage Industry05
Mining06
Petroleum Industry07
360° view
PDV-M 360° view
Rotate the pump by dragging or with the arrow keys; examine it from every angle.
Discharge flangeDN40 – DN300
Capacityup to 1600 m³/h
Headup to 95 m
Speedup to 2900 rpm
Operating temperature-10 °C to +110 °C
Casing pressure (Pmax)10 – 16 bar
PDV-M · Vertical
