DN32 – DN150Discharge flange
up to 400 m³/hCapacity
up to 220 mHead
up to 1450 rpmSpeed
up to +95 °COperating temperature
30 barCasing pressure (Pmax)
Product Description

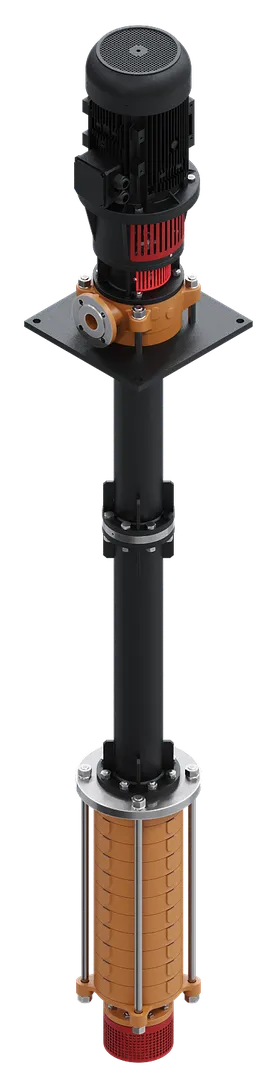

Vertical Multistage Process Pumps (Sump Design)
These are radially split casing, vertical, multistage centrifugal pumps with closed or semi-open impellers. Suction flanges conform to EN 1092-2 / PN 16 and discharge flanges to EN 1092-1 / PN 40 (PN 63). Impellers are balanced in accordance with ISO 1940 Class 6.3.
Liquids handled
Vertical Multistage Process Pumps (Sump Design) are used for transferring clean or slightly contaminated, low-viscosity liquids that contain no solid particles or fibres.
Standards and design
EN 1092-2 / PN 16Suction flanges
EN 1092-1 / PN 40 (PN 63)Discharge flanges
ISO 1940 Class 6.3Impeller balancing
Vertical, sump designWith radially split casing
Design featureRadially split casingWith closed or semi-open impellers, multistage
Applications
Which industries is it used in?
8applications
Iron and Steel Industry01
Marine02
Power Plant03
Food & Beverage Industry04
Paper Industry05
Chemical Industry06
Mining07
Petroleum Industry08
360° view
GMP-EVK 360° view
Rotate the pump by dragging or with the arrow keys; examine it from every angle.
Discharge flangeDN32 – DN150
Capacityup to 400 m³/h
Headup to 220 m
Speedup to 1450 rpm
Operating temperatureup to +95 °C
Casing pressure (Pmax)30 bar

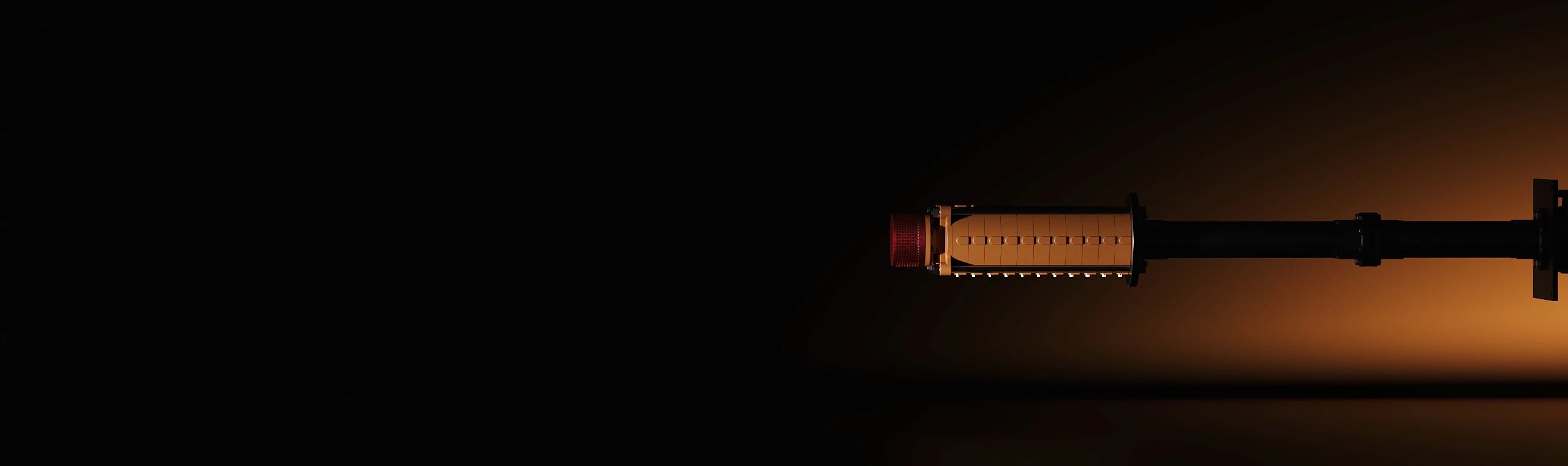

GMP-EVK · Vertical, sump design
