DN32 – DN300Discharge flange
up to 1200 m³/hCapacity
up to 600 mHead
up to 2900 rpmSpeed
-10 °C to +140 °COperating temperature
30 – 63 barCasing pressure (Pmax)
Product Description

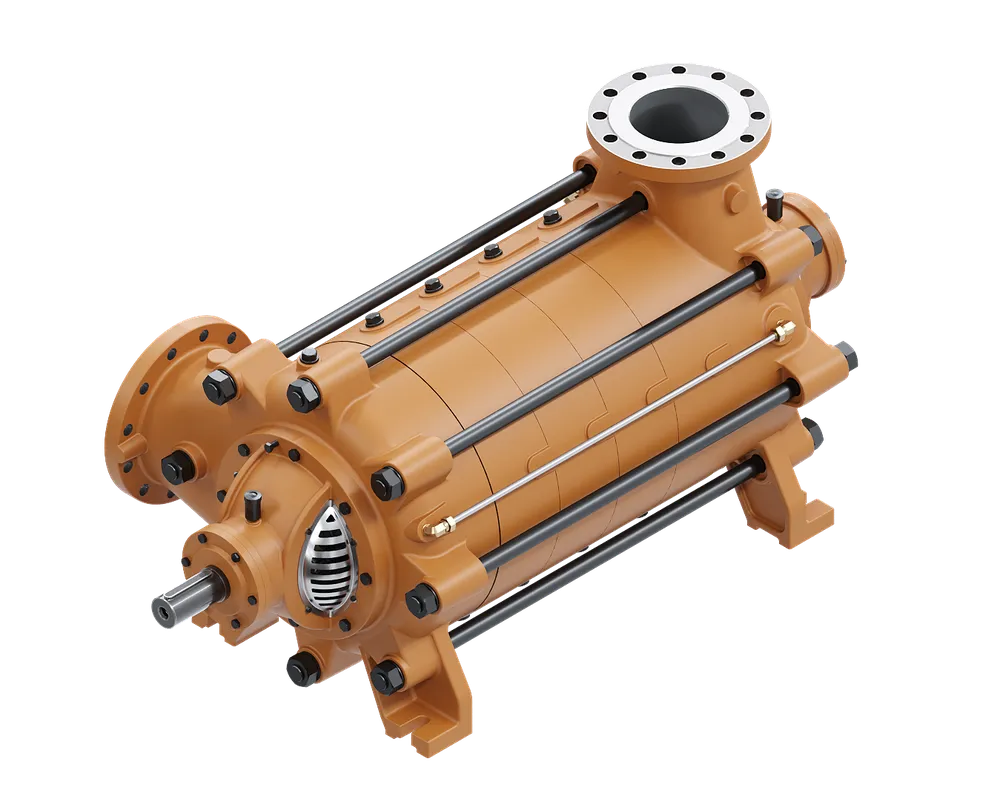

Horizontal Multistage Centrifugal Pumps
These are radially split casing, multistage centrifugal pumps with closed or semi-open impellers. Suction flanges conform to EN 1092-2 / PN 16 and discharge flanges to EN 1092-1 / PN 40 (PN 63). Impellers are balanced in accordance with ISO 1940 Class 6.3.
Liquids handled
Horizontal Multistage Centrifugal Pumps are used for transferring clean or slightly contaminated, low-viscosity liquids free of solid particles and fibres.
Standards and design
EN 1092-2 / PN 16Suction flanges
EN 1092-1 / PN 40 (PN 63)Discharge flanges
ISO 1940 Class 6.3Impeller balancing
HorizontalWith radially split casing
Design featureRadially split casingWith closed or semi-open impellers, multistage
Applications
Which industries is it used in?
12applications
Building Systems01
Iron and Steel Industry02
Marine03
Power Plant04
Food & Beverage Industry05
Heating & Cooling06
Chemical Industry07
Mining08
Petroleum Industry09
Water Supply and Treatment10
Agricultural Irrigation11
Fire Fighting12
360° view
GMP 360° view
Rotate the pump by dragging or with the arrow keys; examine it from every angle.
Discharge flangeDN32 – DN300
Capacityup to 1200 m³/h
Headup to 600 m
Speedup to 2900 rpm
Operating temperature-10 °C to +140 °C
Casing pressure (Pmax)30 – 63 bar

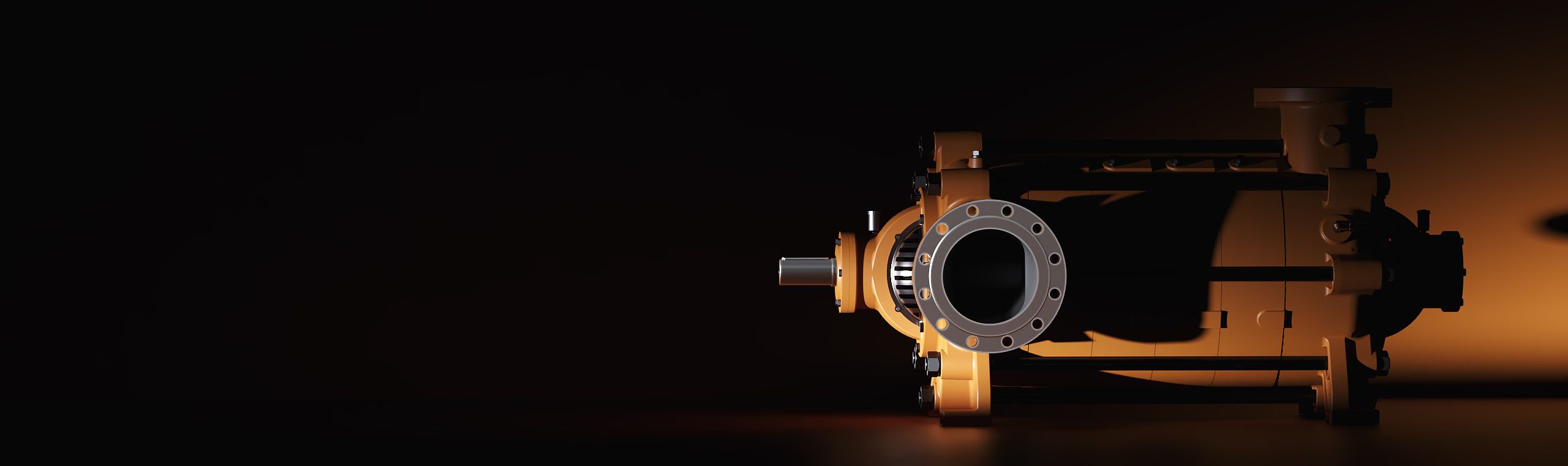

GMP · Horizontal
