POMPAEnd SuctionFire Pumps

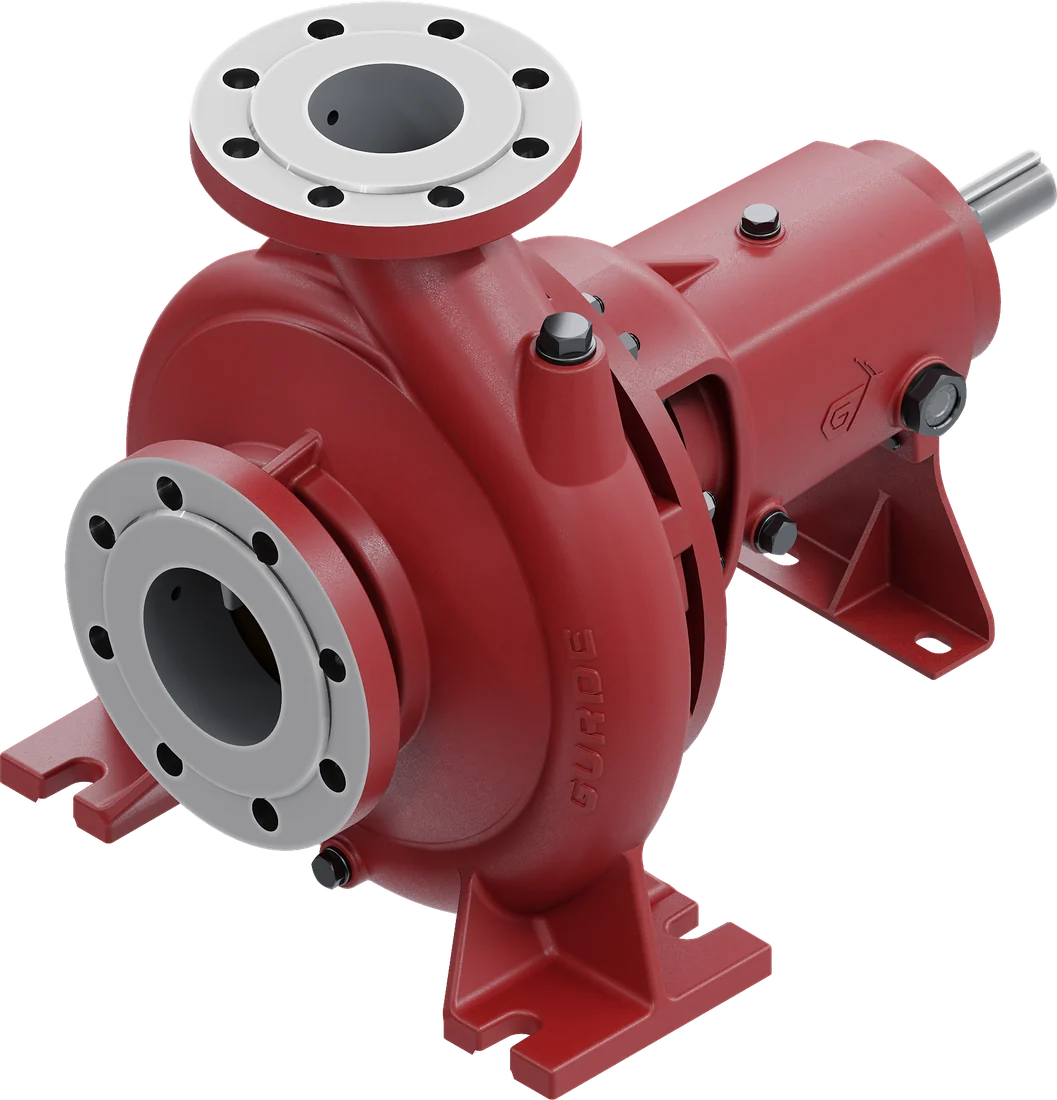

End suction fire pumps are horizontal, single-stage centrifugal pumps with volute casing and closed impeller. Thanks to the back-pull-out design, the bearing and rotor assembly can be removed without disconnecting the volute casing from the pipework.
End Suction Fire Pumps
End suction fire pumps are horizontal, single-stage centrifugal pumps with volute casing and closed impeller. Thanks to the back-pull-out design, the bearing and rotor assembly can be removed without disconnecting the volute casing from the pipework.
NFPA (National Fire Protection Association) is the American association that sets and publishes the standards, mandatory in the USA, on matters affecting fire and fire safety. NFPA is the most widely used standard in the world and, particularly for pump systems, the most frequently cited, respected and applied.
As in the rest of the world, fire fighting pump systems in our country are designed in accordance with NFPA standards. The NFPA 20 standard defines the installation rules and performance characteristics of fire pumps for fire protection.
End Suction selection table
Pump size and motor power according to rated capacity and head. Select a cell from the table.
- Rated capacity
- —
- Head
- —
- Pump
- —
- Motor
- —
| Capacity (GPM)Head (m) → | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 |
|---|---|---|---|---|---|---|---|---|
| 255.7 m³/h | ||||||||
| 5011.4 m³/h | ||||||||
| 10022.7 m³/h | ||||||||
| 15034.1 m³/h | ||||||||
| 20045.4 m³/h | ||||||||
| 25056.8 m³/h | ||||||||
| 30068.1 m³/h | ||||||||
| 40091 m³/h | ||||||||
| 450102 m³/h | ||||||||
| 500114 m³/h | ||||||||
| 750170 m³/h | ||||||||
| 1000227 m³/h | ||||||||
| 1250284 m³/h | ||||||||
| 1500341 m³/h | ||||||||
| 2000454 m³/h | ||||||||
| 2500568 m³/h | ||||||||
| 3000681 m³/h | ||||||||
| 3500795 m³/h | ||||||||
| 4000908 m³/h | ||||||||
| 45001022 m³/h | ||||||||
| 50001136 m³/h |
Which systems is it used in?
ApplicationsHigh-rise buildings · Industrial plants · Power plants · Shopping centres · Storage areas
