Full Automatic Booster Setswith Cast Impellers
Full automatic booster sets built with radially split casing, vertical, multistage centrifugal pumps, taking up minimum space thanks to their vertical design.
Full Automatic Booster Sets with Cast Impellers
These are radially split casing, vertical, multistage centrifugal pumps. They are suitable for pumping clean or very slightly contaminated, low-viscosity liquids that are non-abrasive and free of solid particles and fibres. Thanks to their vertical design, they take up minimum floor space and save room.
Full Automatic Booster Sets with Cast Impellers are manufactured with vertical pumps. Depending on the required capacity and head, the systems are produced in single-pump, twin-pump or triple-pump versions. On request, they can also be configured as a multi-pump set with up to 6 pumps.

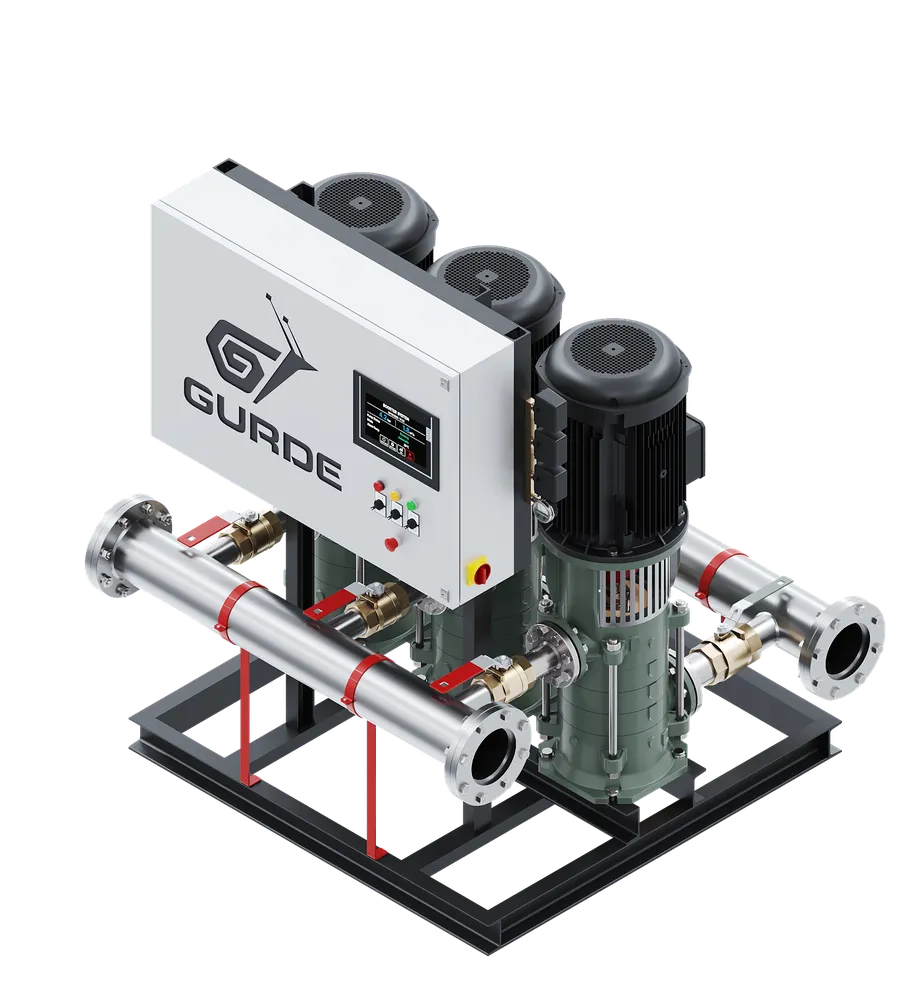

Full automatic booster set, 360° view
Rotate the complete package on a common base frame, with its pumps, control panel, manifolds and valves, by dragging or with the arrow keys.
Design features of the packaged system
From the number of pumps to the control panel functions; the standard and optional features of the booster set.

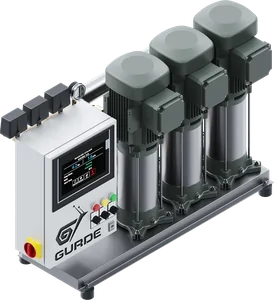

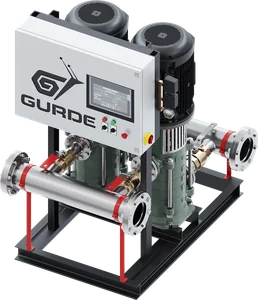

Booster sets are produced as standard in single-pump, twin-pump and triple-pump versions depending on the required capacity; on request, sets of up to 6 pumps can be built.

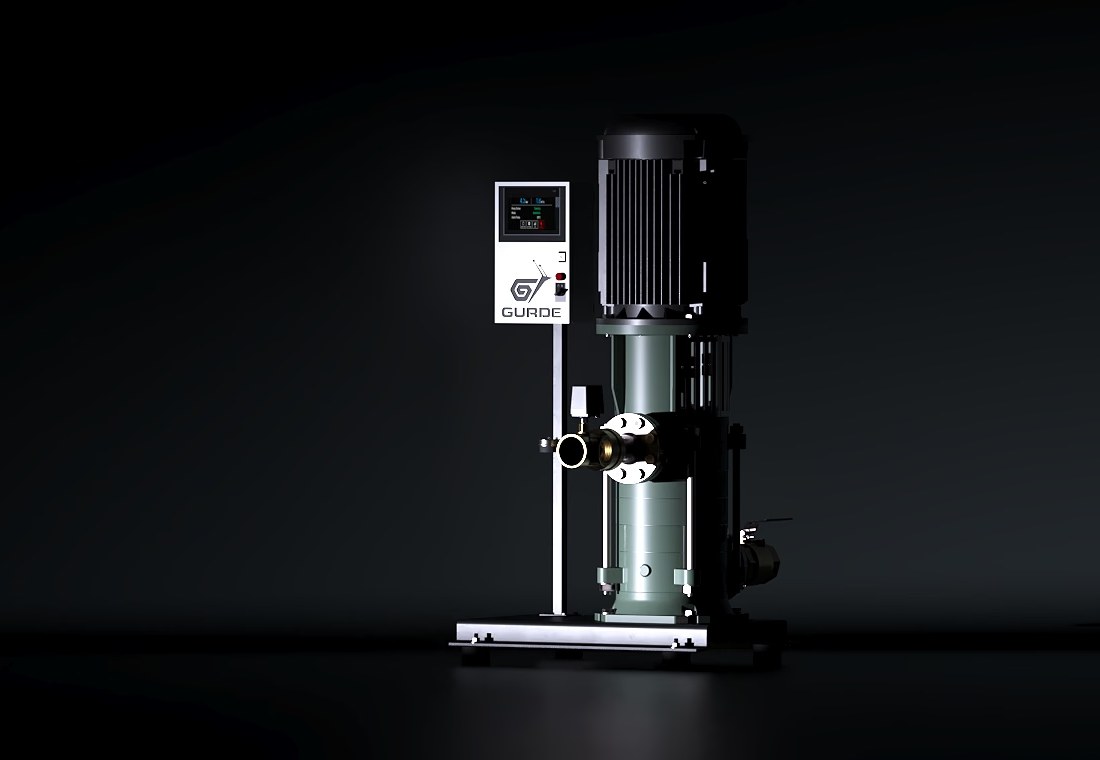

Single-pump booster sets are fitted with a water level float switch (electric float switch).
Single-pump booster sets with three-phase motors are fitted with a phase control system.
In booster sets with more than one pump, pump alternation, phase control and liquid level control are standard features.
Booster sets can operate in two different modes: automatic and manual.
Optionally, for comfort purposes, it can be manufactured as a variable-speed unit with variable frequency drive (VFD) control.
The electrical components used in the booster set control panel are selected from reliable, high-quality brands.
High-efficiency class electric motors conforming to IEC 60034-30 are used.
Material information
Standard materials and optional choices for the pump, control panel, manifold, base frame and accessories.
| Part | Standard | Optional |
|---|---|---|
| Pump | ||
| Base mounting plate | GG 25 | Bronze / AISI 304 |
| Stage casing | GG 25 | Bronze / AISI 304 |
| Intermediate stage | GG 25 | Bronze / AISI 304 |
| Impeller | Brass | Bronze / AISI 304 |
| Shaft | AISI 420 | AISI 304 |
| Control panel | ||
| Control panel | Pressure switch controlled | Variable frequency drive (VFD) controlled |
| Manifold | ||
| Manifold | Steel pipe | AISI 304 |
| Base frame | ||
| Base frame | NPU section / St 37 sheet steel | — |
| Accessories | ||
| Valve | Brass | AISI 304 |
| Check valve | Brass | AISI 316 |
Optional materials are highlighted. Contact us for detailed material selection.
